Passenger lift

Optimus

Flexibility:

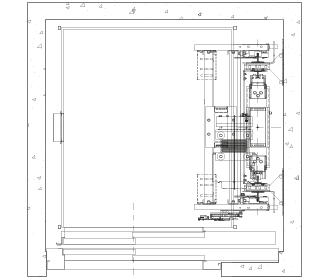

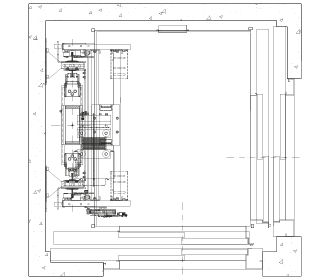

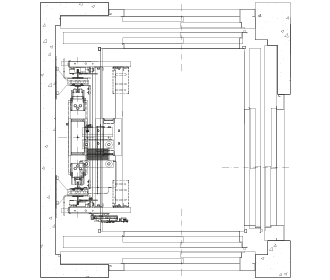

Allows single, double and triple entrance. Ideal for 90º solutions.

Single-phase:
Works on any single-phase 220 V socket.

Easy installation:
Bed plate easy to assemble. Self-supporting.

Adaptability:
Possibility to design it with EN 81.21 standard for reduced pit and headroom. Customised to each client.

Advantages

Flexibility:
Allows single, double and triple entrance. Ideal for 90º solutions.

Single-phase:
Works on any single-phase 220 V socket.

Easy installation:
Bed plate easy to assemble. Self-supporting.

Adaptability:
Possibility to design it with EN 81.21 standard for reduced pit and headroom. Customised to each client.

Optimus

Applications

  • Residential buildings
  • Modernizations
  • Existing shafts
  • Refurbishment
  • Reduced shafts

Technical Features

Duty speed: Up to 1 m/s
Duty load: Up to 1250 kg.
Roping: 1:1 – 2:1
Standard pit: 1200 mm.
Standard headroom: 3600 mm.

Manufacturers

Car Frame: EMESA and TTV
Machines: SICOR, LEROY SOMER, CEG, ZIEHL-ABEGG, SASSI
Doors: FERMATOR, WITTUR, MEILLER
Control panel: CARLOS SILVA, SPRINTE, NEWLIFT, DIGITAL ADVANCE,  ARKEL, LESTER, MEGOM
Pushbuttons: BST, SCHAEFER, DEWHURST

Downloads

Catalog sheet

Customised solutions

optimus GP

Shaft width 670 mm.

Q maximum: 375 kg (Qt max: 1165 kg.)
Minimum pit: 320 mm.
Minimum headroom: 2840 mm.
Restrictive technical measure: 395 mm.
Control panel cabinet in landing.

Optimus

Optimus 81.70 – Entrance 90º

Optimus

Panoramic

Optimus

Optimus CT Mínima

Optimus

Optimus FHR

Reduced pit plus headroom 81.21

FHR (CT435):
Q max: 630 Kg (Qt max: 1550 Kg)
Minimum pit: 265 mm.
Minimum headroom: 2400 mm.
Restrictive technical measure: 435 mm.

FHR (CT350):
Q max: 375 Kg (Qt max: 1165 Kg)
Minimum pit: 350 mm.
Minimum headroom: 2550 mm.
Restrictive technical measure: 350 mm.

Optimus
